Features

1-Available in multiple Styles, Anti-corrision and PP material.

2-Medium and indicator structure are completely isolated, good sealing performance, suitable for liquid level measurement under high pressure, high temperature and corrosion conditions, with high reliability.

3-Conventional size DN20, DN25, standard 304 stainless steel flange, other materials can be customized.

4-Intelligent Remote transmission, can add transmitter, output 4-20mA, optional explosion-proof type, strong anti-interference ability and high precision Insulation waterproof, simple structure, convenient reading, no blockage, no leakage, insulation and waterproof.

Description

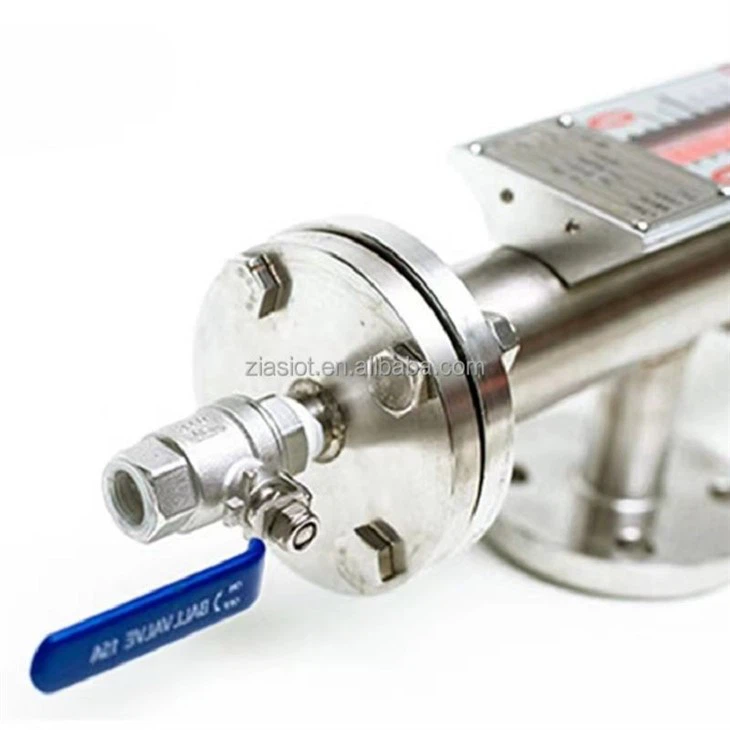

ZP-UHZ2661 Magnetic Flap Level Gauge Meter (magnetic level indicator) uses float chamberand liquid tank (or container equipment) to form a connectivitystructure, so that the liquid level of the two are the same. Under theaction ofliquid buoyancy, when the liquid level rises (falls), the float ofthe liquid level rises (falls), and the permanent magnetic steel in the floatdrives the magnetic red and white roller to turn by 180° under the forceof magnetic coupling, thus the liquid height could be displayed clearlyand visibly by the white and red demarcation line in the indicator.

Application

ZP-UHZ2661 Magnetic Flap Level Gauge Meter (magnetic level indicator) can be used for liquid level medium detection of various tower tanks, slots, spherical containers, boilers and other equipment.

Remark:

Confirm the follwoing parameters before purchasing：

1- Medium name or density, medium temperature, pressure

2- Measuring distance (flange spacing)

3- Flange size (default DN20, DN25)

Parameters:
