Features Of Ziasiot 80Ghz Radar Level Sensor
- 1 mm high accuracy
- 3° beam angle
- 80GHZ FM Continuous Wave
- Protection level is IP68, pressure resistance can reach 0.1-0.5MPa, temperature resistance can reach 100 degrees
- The measuring range can reach 120 meters, and the shell can be made of stainless steel & cast aluminum
- Customization Support: OEM and ODM support
- Multiple connection methods, flange, bracket, thread, clamp connection
- Robust construction with materials such as PTFE, aluminum, and stainless steel, providing excellent durability and resistance to harsh environments (IP67 rating).
- Customizable output signal, RS485 & 4-20mA can be selected, and Customizable Bluetooth function
Description Of Ziasiot 80Ghz Radar Level Sensor
The RD80G series radar level sensor refers to frequency-modulated continuous wave (FMCW) radar products that operate at 76-81GHz, supporting four-wire and two-wire applications. In multiple models, the maximum range of the product can reach 120m, and the blind spot can reach 8 cm. Due to its higher operating frequency and shorter wavelength, it is particularly suitable for solid-state applications. The working method of transmitting and receiving electromagnetic waves through a lens has unique advantages in high-dust and harsh temperature environments (+200 ℃). The instrument provides a flange or threaded fixing method, making installation convenient and simple.
Product Details：

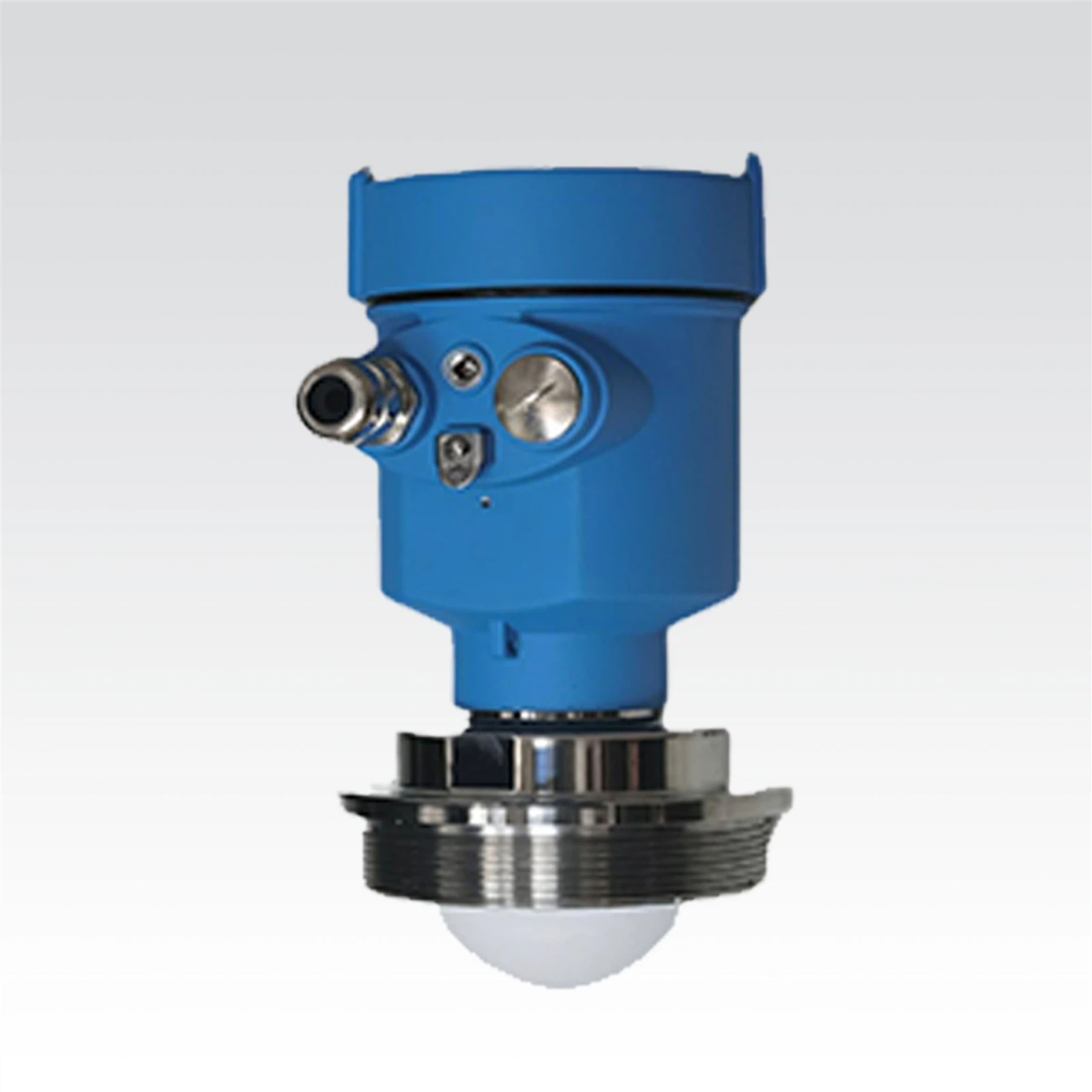

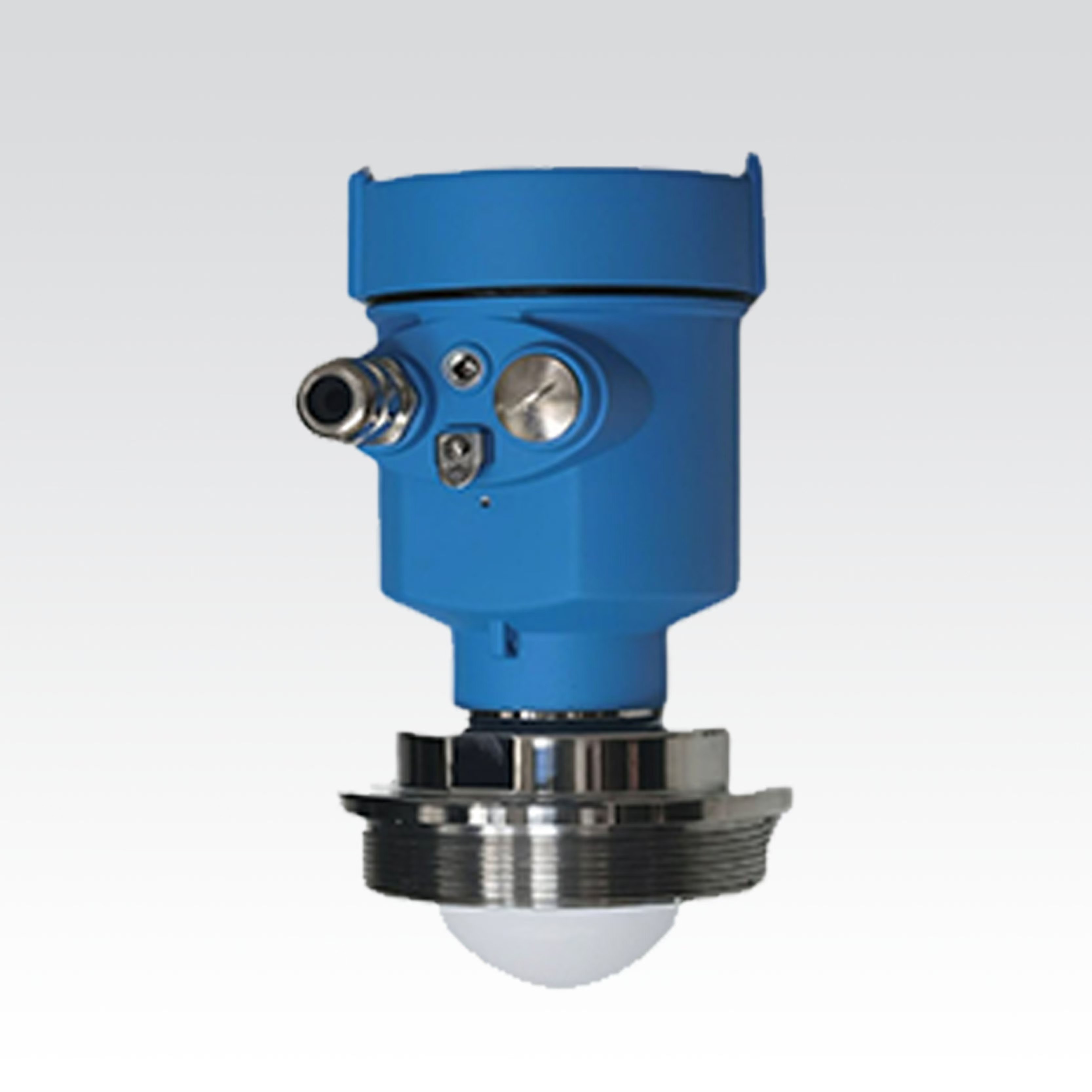

RD80G01 Radar Level Sensor
Measuring medium: Liquid is without corrosion
Measuring range: 0.05m-10/20/30/60/100m
Process connection: Thread G¾"A / ¾"NPT; Flange ≥DN40
Process temperature: -40～80℃
Process pressure: -0.1～0.3 MPa
Antenna size: 32mm lens antenna
Antenna material: PTFE
Accuracy: ±1mm Protection level: IP67
Center frequency: 123GHz Launch angle: 3°
Shell: Aluminum/Plastic/Stainless steel
Signal output: Two-wire system/4…20mA/HART protocol
Four-wire system/4…20mA/HART protocol
Six-wire system/4…20mA/HART Protocol/RS485/Modbus protocol

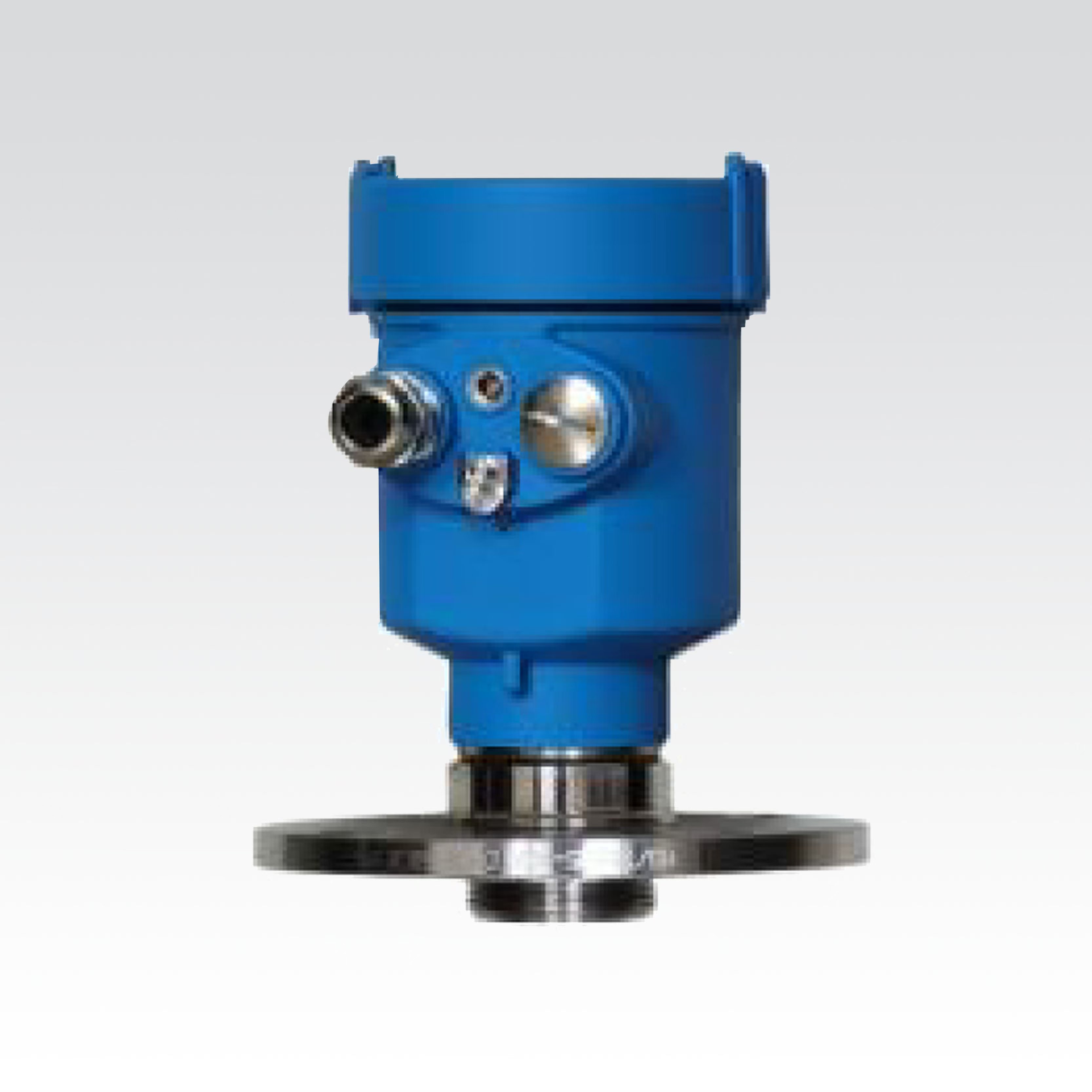

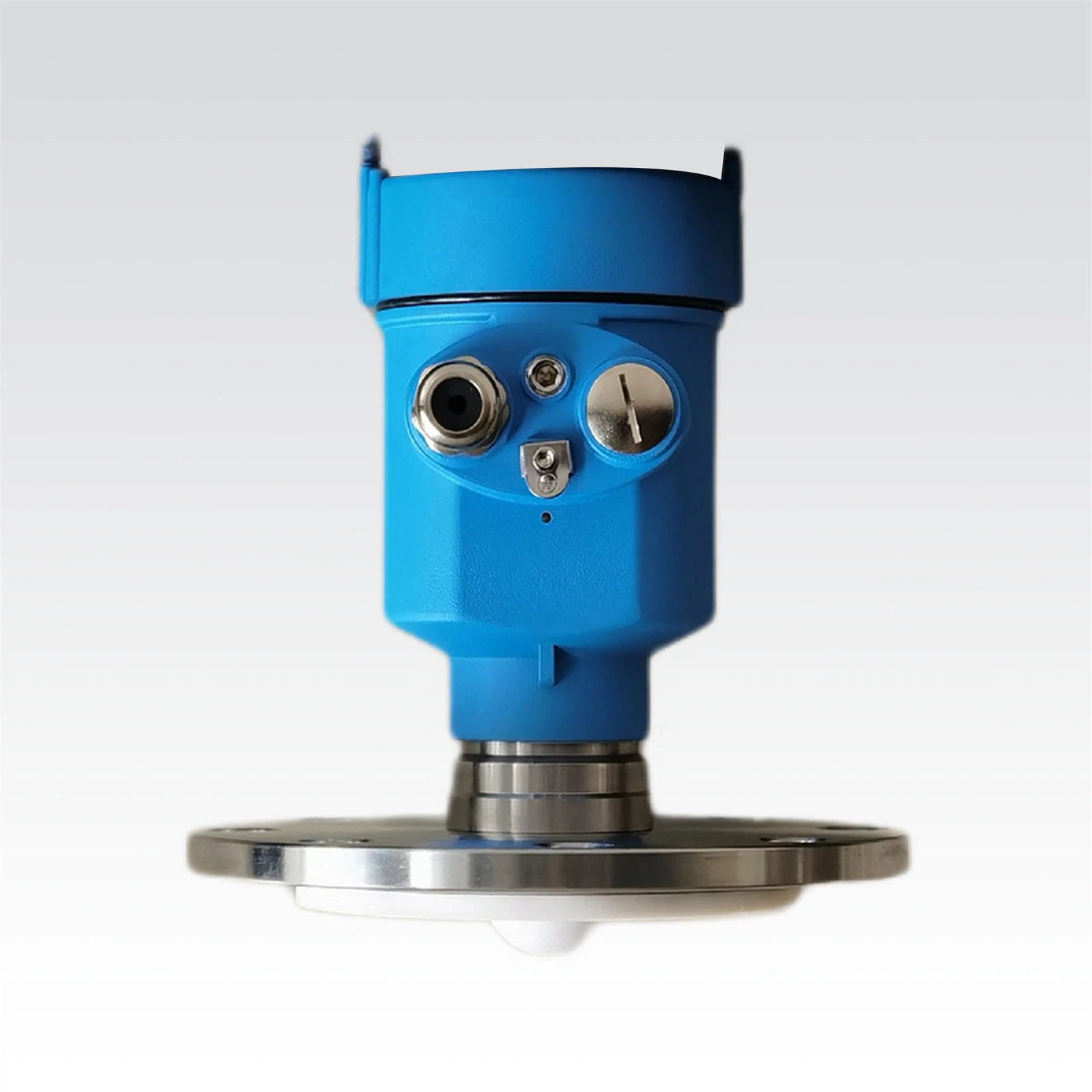

RD80G02 Radar Level Sensor
Measuring medium: no-corrosive liquid, slightly corrosive liquid
Measuring range: 0.05m-10/20/30/60/100m
Process connection: Flange DN80
Process temperature: -40～110℃
Process pressure: -0.1～1.6 MPa
Antenna size: 32mm lens antenna
Antenna material: PTFE
Accuracy: ±1mm(range below 35m)& ±5mmrange from 35m- 100m)
Protection level: IP67
Center frequency: 80GHz Launch angle: 3°
Shell: Aluminum/Stainless steel
Signal output: Two-wire system/4…20mA/HART protocol
Four-wire system/4…20mA/HART protocol
Six-wire system/4…20mA/HART Protocol/RS485/Modbus protocol

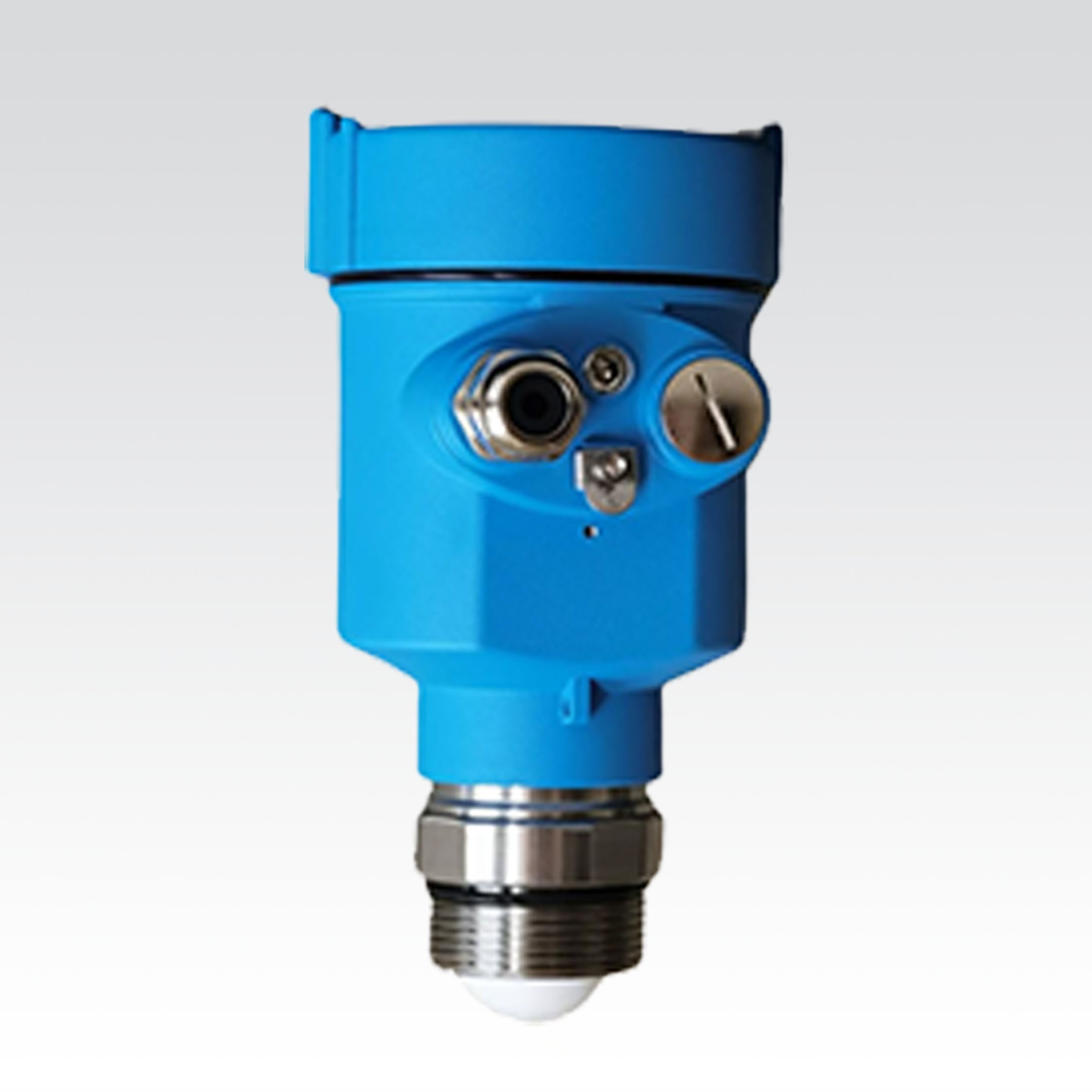

RD80G03 Radar Level Sensor
Measuring medium: strongly corrosive liquid, steam, foam
Measuring range: 0.05m-10/20/30/60/100m
Process connection: Flange DN50
Process temperature: -40～130℃
Process pressure: -0.1～2.5 MPa
Antenna size: 34mm lens antenna
Antenna material: PTFE
Accuracy: ±1mm(range below 35m)& ±5mmrange from 35m- 100m)
Protection level: IP67
Center frequency: 80GHz Launch angle: 3°
Shell: Aluminum/Stainless steel
Signal output: Two-wire system/4…20mA/HART protocol
Four-wire system/4…20mA/HART protocol
Six-wire system/4…20mA/HART Protocol/RS485/Modbus protocol

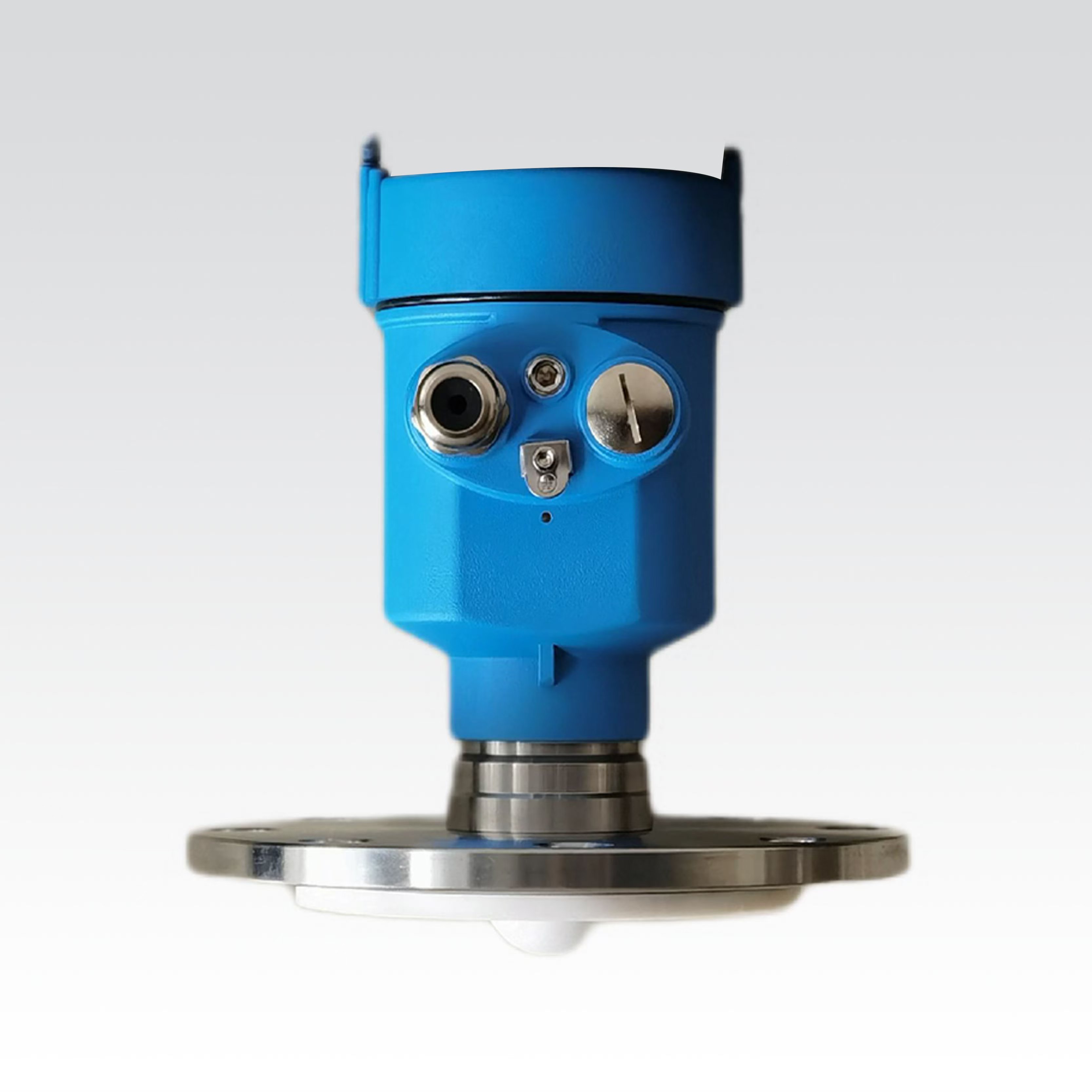

RD80G04 Radar Level Sensor
Measuring medium: strongly corrosive liquid, steam, foam
Measuring range: 0.1m-10/20/30/60/100m
Process connection: Flange DN50
Process temperature: -40～130℃
Process pressure: -0.1～1.0 MPa
Antenna size: 76mm lens antenna
Antenna material: PTFE
Accuracy: ±1mm(range below 35m)& ±5mmrange from 35m- 100m)
Protection level: IP67
Center frequency: 80GHz Launch angle: 3°
Shell: Aluminum/Stainless steel
Signal output: Two-wire system/4…20mA/HART protocol
Four-wire system/4…20mA/HART protocol
Six-wire system/4…20mA/HART Protocol/RS485/Modbus protocol

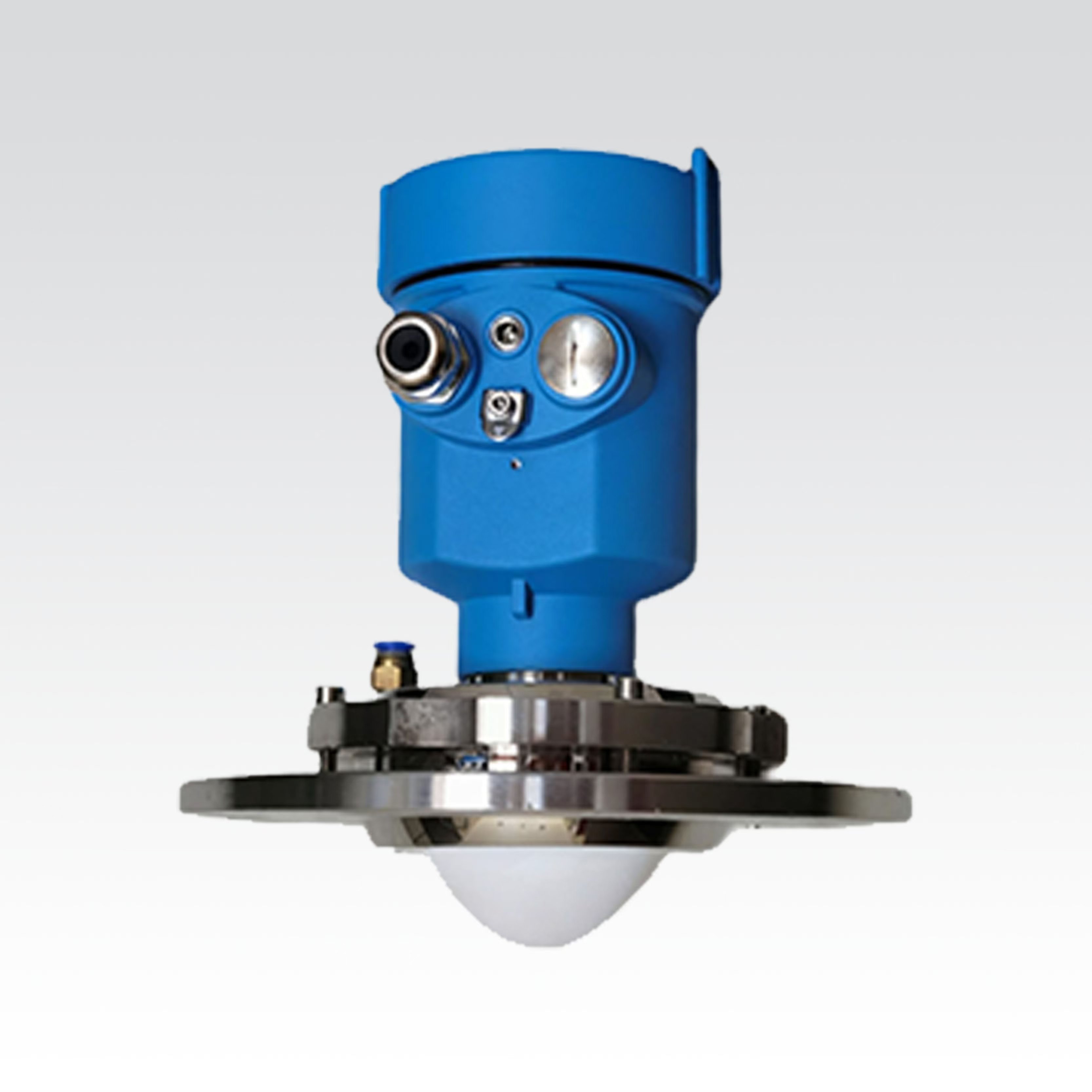

RD80G06 Radar Level Sensor
Measuring medium: solids, storage containers, process containers, or strong dust situation
Measuring range: 0.3m-10/20/30/60/100m
Process connection: Flange DN100
Process temperature: -40～110℃
Process pressure: -0.1～0.3 MPa
Antenna size: 76mm lens antenna/ universal purge (or without a purge)
Antenna material: PTFE
Accuracy: ±5mm Protection level: IP67
Center frequency: 80GHz Launch angle: 3°
Shell: Aluminum/Plastic/Stainless steel
Signal output: Two-wire system/4…20mA/HART protocol
Four-wire system/4…20mA/HART protocol
Six-wire system/4…20mA/HART Protocol/RS485/Modbus protocol
RD80G05 Radar Level Sensor
Measuring medium: strong corrosive liquid, steam, foam, high
temperature and high pressure
Measuring range: 0.1m-10/20/30/60/100m
Process connection: Flange DN80
Process temperature: -40～200℃
Process pressure: -0.1～2.5 MPa
Antenna size: 76mm lens/ integral fill antenna
Antenna material: PTFE
Accuracy: ±1mm Protection level: IP67
Center frequency: 80GHz Launch angle: 3°
Shell: Aluminum/Plastic/Stainless steel
Signal output: Two-wire system/4…20mA/HART protocol
Four-wire system/4…20mA/HART protocol
Six-wire system/4…20mA/HART Protocol/RS485/Modbus protocol

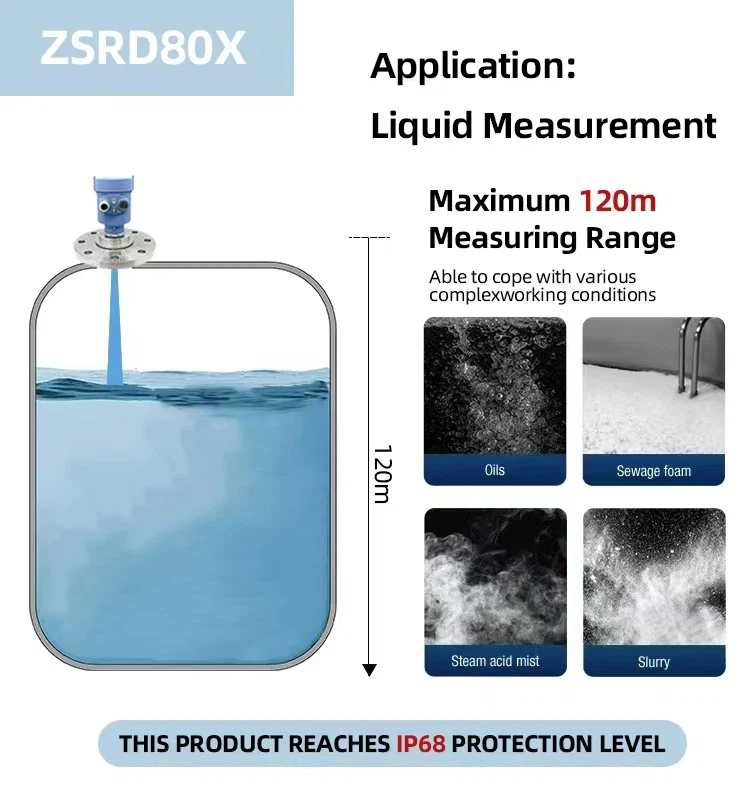

Applications
The Ziasiot RD80G series radar level sensor is for continuous level measurement Of liquid/tank/silo/bin/cement/grain warehouse/Slurry, etc., measuring range from 0 to 100 m.
