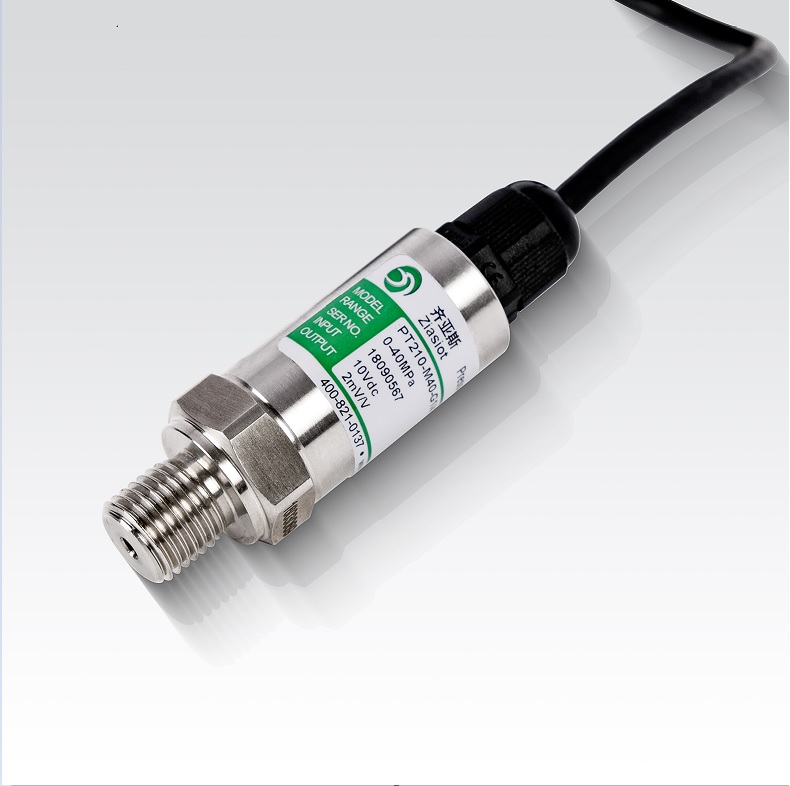

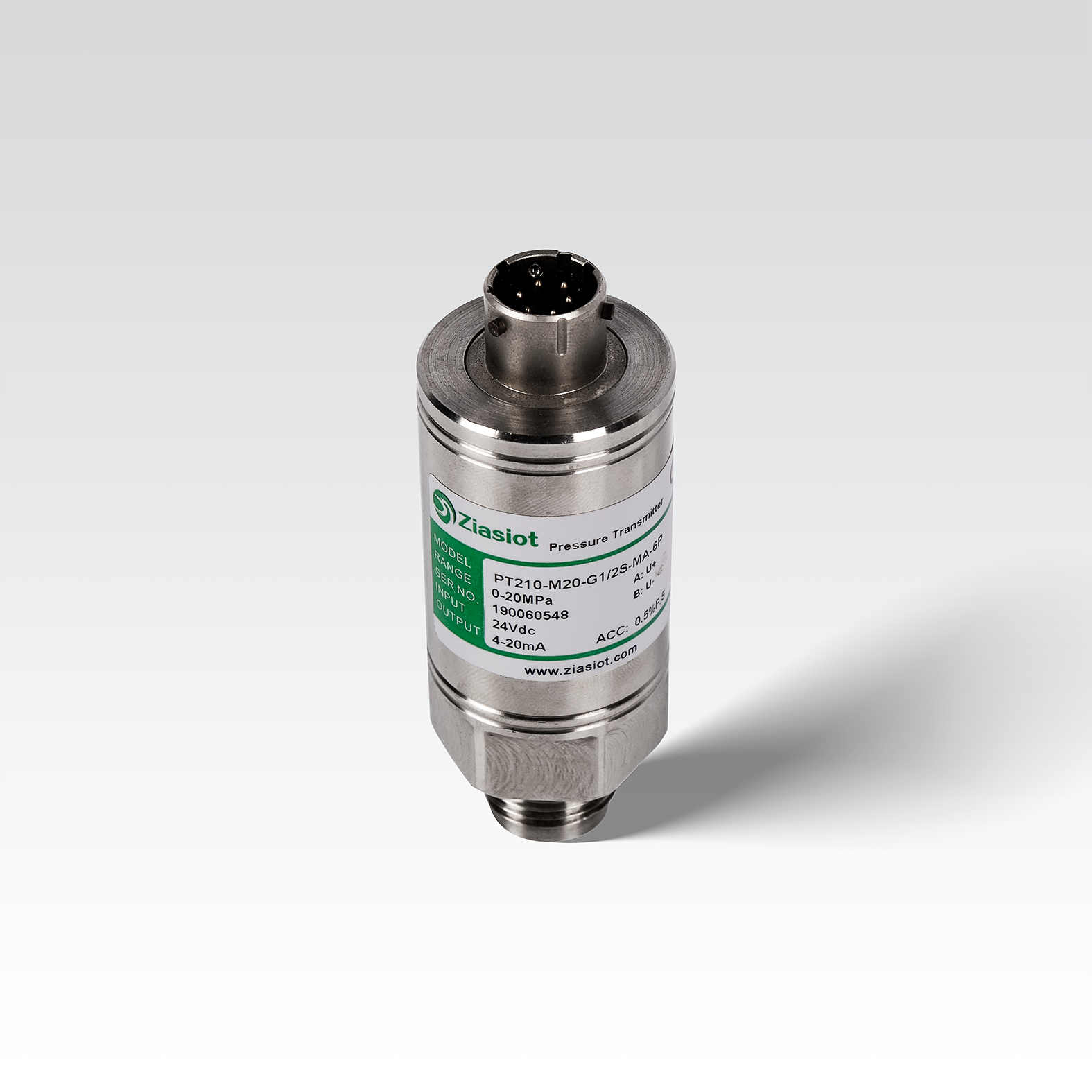

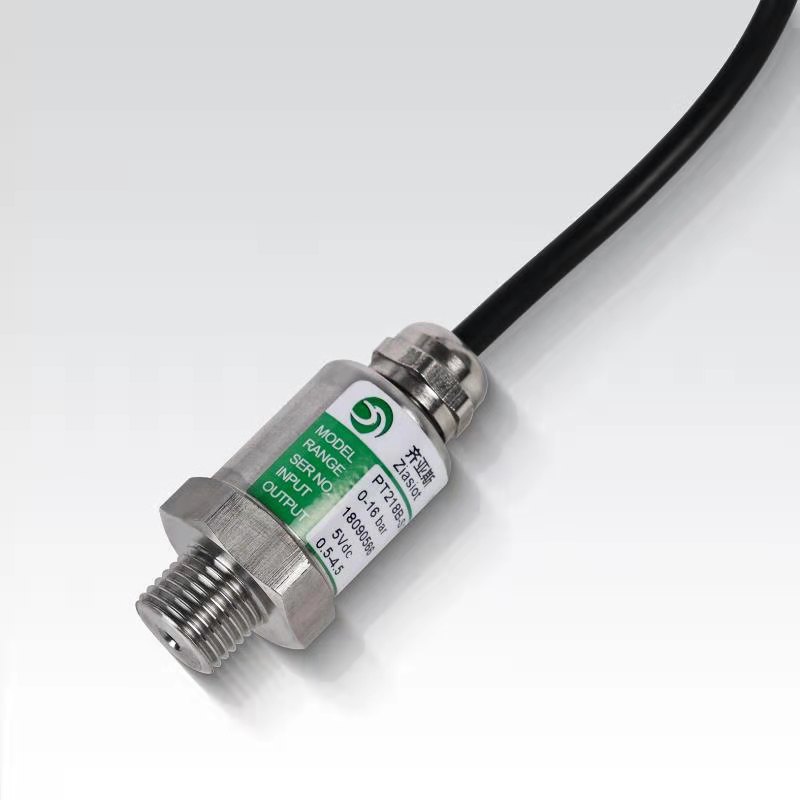

Product Description

The PT210 series standard pressure sensor is a civil and industrial product with large consumption. This series of products is widely used for pneumatic and hydraulic detection even in very harsh medium environments such as sewage, vapor, and slightly corrosive liquid and gas.

The PT210 series pressure transmitter adopts superior 17-4PH material as an elastomer and an imported strain gauge; it can convert gauge pressure of the measured medium into a standard signal output of voltage and current. It has a wide pressure measuring range, stainless steel housing, accuracy and durability, a small size, and many types of pressure ports available, and it is easy to install and use.

Features

Accuracy superior to±0.5%FS
Imported strain gauge
0~10bar or 0~4000bar
Stainless steel encapsulation
Multiple electrical connection
Protection grade IP65

Application

Industrial process detection&control
Hydraulic System
Industrial mechinery manufacturing
General industrial applications

Technical parameters

Pressure Range: 0～10 bar,0～600bar
Accuracy: ±0.5% F.S
Overload Capactity: 1.5 times rated pressure
Breakdown Pressure: 3 times rated pressure
Pressure Type: gauge pressure
Electrical Environmental Temp: -25℃～ 85 ℃
Mechanical Shock: 100g/1msec
Mechanical Vibration: ≤20g(15-2000Hz)
Temperature Drift: ≤0.04% /℃
Compatible Medium: all corrosive medium compatible with material1Cr18Ni9Ti and material: 17-4PH
Electrical Performance: 2-wire / 3-wire / 3-wire
Output: 4-20mA / 0-10 V / 0-5V
Response Time: ≤3msec / ≤10msec / ≤10msec
Supply: 10-30VDC / 12-30VDC / 10-30VDC
Overload Resistance: (U-10)/0.02Ω / ＞25KΩ / ＞25KΩ
E-Connection: lead-wire,M12×1 round connector,Hirschman connector
Ingress Protection: IP65
Pressure Connector: G1/4,1/4NPT,G1/2,M20

Selecting Guide

Note
* Please let us know what kind of model, measuring range, output, the screw thread & electric connection type, accuracy, and diameter.
* Or tell us your techincal requirement for the sensor selection.
* OEM/ODM is welcomed.

Package

* All our sensors will be well packed with bubble & carton.
* You can choose your own label(Screen Print or Laser Engraving).
* Can be netural packing or OEM.

Shipping
* Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
* L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
* Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Warranty

* We provide 1 year warranty.
* If the product is defective, please notify us within 3 days after receiving.
* All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.
