Product Parameters
| Contact capacity | 50W |
| Medium Density | ≥0.55g/cm3 |
| Float diameter | 034 x 68mm/075x120/041 x150/050x150/041 x125 |
| Swith condition&Qty | transform type with one switch (SPDT) |
| Installation depth L | 80~300mm |
| Max voltage | 250VAC, 230VAC |
| Max current | 0.6A(SPDT) |
| Material | SUS304/SUS316/PP/PE/PTFE |
| Working temperature scope | -20~120°C |
| High-temperature type | ≤ 350°C |
| Pressure | 1.0~3.0MPa |
| Connection | M20×1.5 female thread |
| Installation angle | ≤ ±10° |
| IP grade | IP65 |
| Anti-explosion grade | Exia II CT6Ga or Exd II CT6Gb |
Description

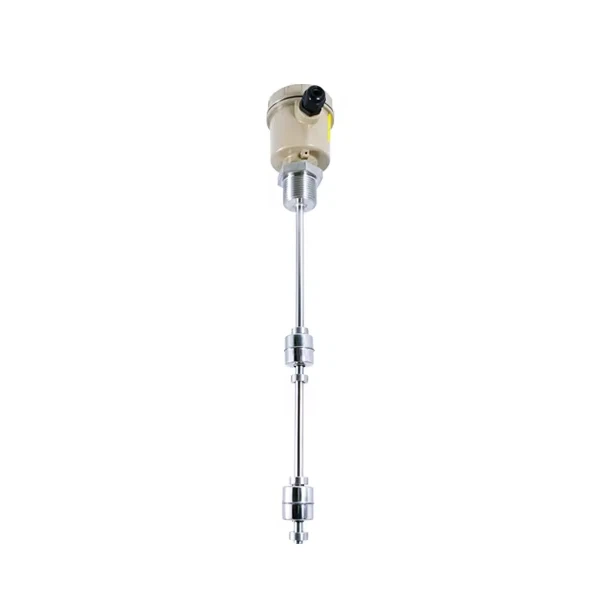

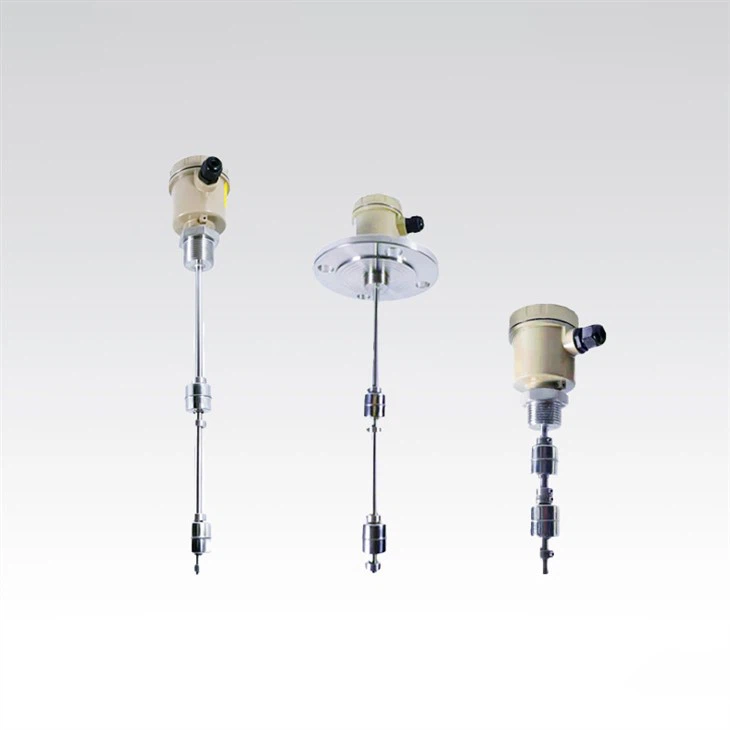

The magnetic float level switch consists of a reed and a magnetic float ball, which is based on the floating principle that utilizes a magnetic float ball to make the relevant reed close or open according to the height changing of the liquid level, thus controlling and measuring the liquid level.

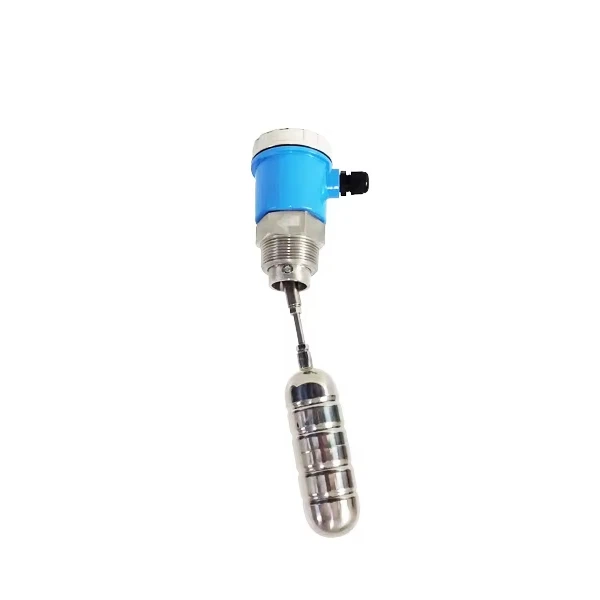

Ziasiot side-mounted float switch is often used to control the liquid level of the storage tank, Side-mounted float switch has no external power supply, is side or top-mounted, wide temperature and pressure range, and has a variety of process connections. The side-mounted float switch has all stainless steel float switch, ordinary types float switches and high-temperature type float switches, it is mainly used in refrigerators, dehumidifiers, water dispensers, humidifier-medical equipment, air conditioning, coffee machines, mold temperature machines, water coolers and other liquid level controls.
Features
1. No external power supply, passive output contact ;
2. Can be installed horizontally on the side wall of the bucket or vertically on the top of the bucket;
3. A simple structure, stable and reliable performance, and easy installation;
4. Long life span, stable and reliable operation, easy installation, almost no maintenance
5. Independent of mediums'physical and chemical status.
6. Applicable for all kinds of bad medium environments with density ≥0.55g/cm³.
7. Multiple materials and connection methods can meet different environmental requirements;
8. Available for interface detection of mediums with two different densities.
9. Wide application range. Pressure 1.0~3.0MPa, temperature max 350 ° c;
10. Anti-explosion design.
11. Customization.
Dimensions
Application
Float level switch is widely used in shipbuilding, papermaking, printing, generator equipment, petrochemicals, food industry, water treatment, electrical engineering, fuel industry, hydraulic machinery, and other fields
