Product Features

The basic type of LDG intelligent electromagnetic flowmeter has display. Output 4_20 mA and 0_1 kHz. Alarm and other functions. Other additional functions can be added according to the actual situation:

1. Split installation: the sensor needs to be installed below the ground or other reasons. Split installation should be selected
2. RS - 485 communication: the sensor needs to communicate with other equipment. The RS - 485 communication function is required,
3. If you need other functions, please call to customize;

Description

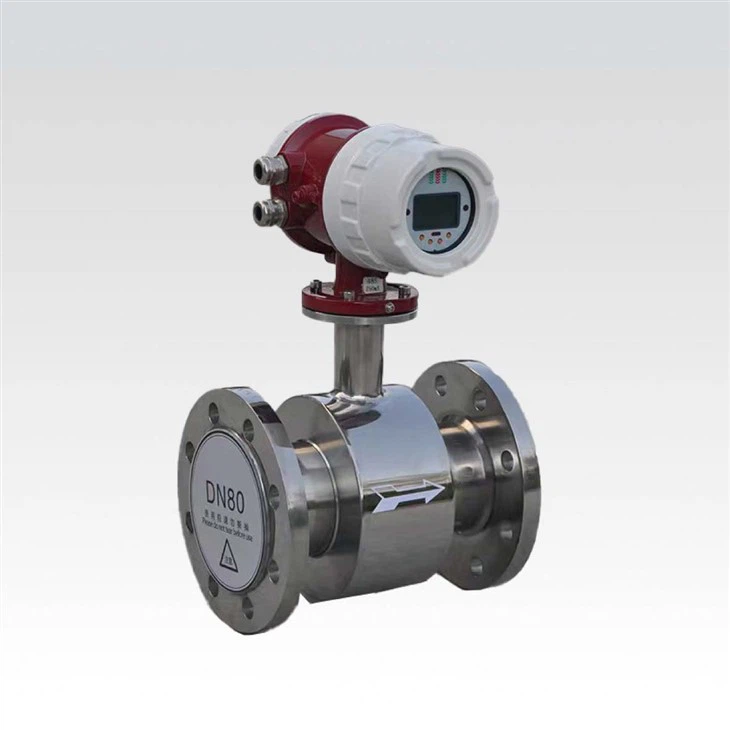

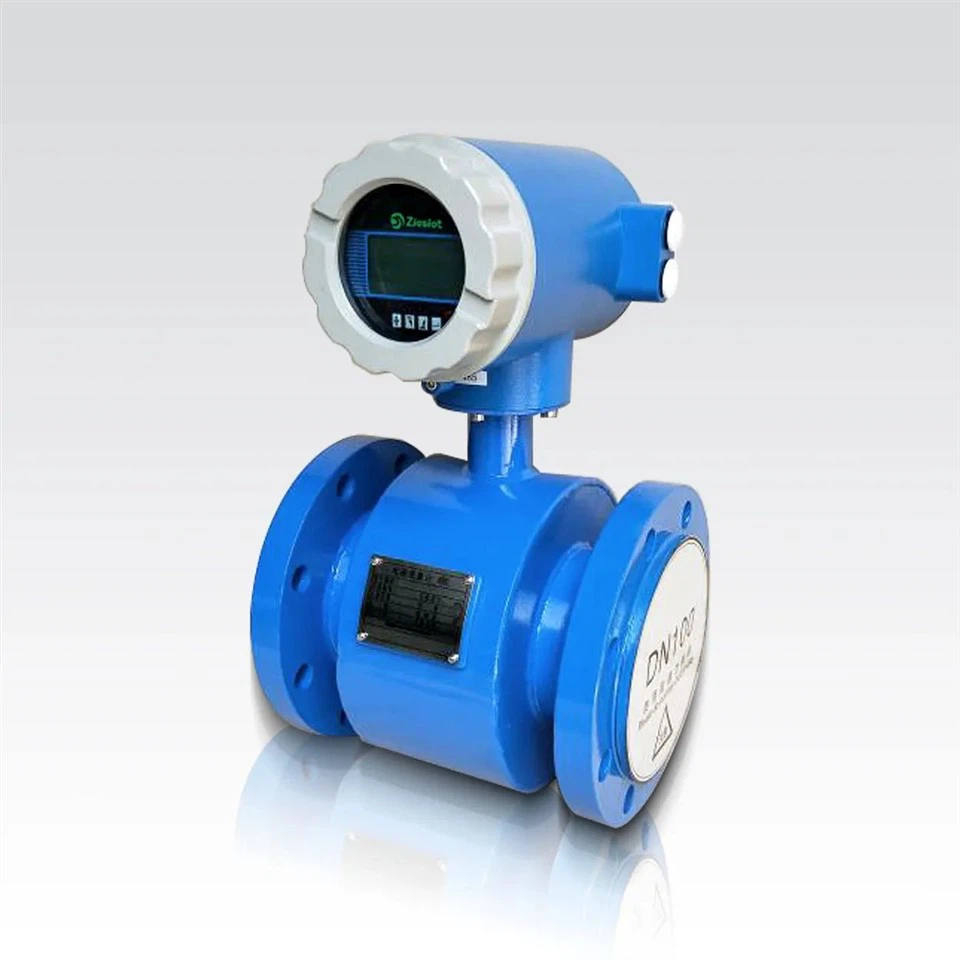

LDG intelligent electromagnetic flow meter for measuring the volume flow in closed conduits conductive liquid and slurry, such as clean water, sewage, various chemical salt solution, mud slurry . Pulp , pulp and liquid foods etc .

Technical parameters

Conductivity: >5 p S/cm
Velocity range: 0.5~10m/s
Extended range: 0.1~15m/s
Flow direction: Positive. Reverse, flow
Accuracy level: ±0.2% ±0.3% ±0.5%
Repeatability: ±0.1% ±0.15% ±0.25%
Work pressure: < 4 .Ompa (DN10-80) / <1,6mpa(DN!00~150) / <1. Ompa (DN200-1000) / <0.6mpa(DN1100-2200) / Special pressure-resistant
customized fluid temperature: -25'C~60'C
Protection level: stainless steel 316L IP68
Number of electrodes: 2- 6
Lining material: Neoprene/Polychloroprene rubber/-F4IPTFE) PTFE
Output signal: Standard current 4〜20mA
Communication: RS-485 / Hart
Power supply: DC24V10VA AC220V10VA working environment
Humidity：5%~90%

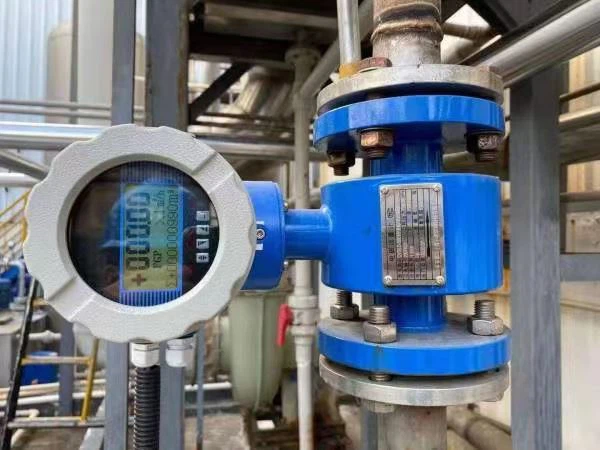

Application:

LDG intelligent electromagnetic flow meter for measuring the volume flow in closed conduits conductive liquid and slurry, such as clean water, sewage, various chemical salt solution, mud slurry . Pulp , pulp and liquid foods etc .
