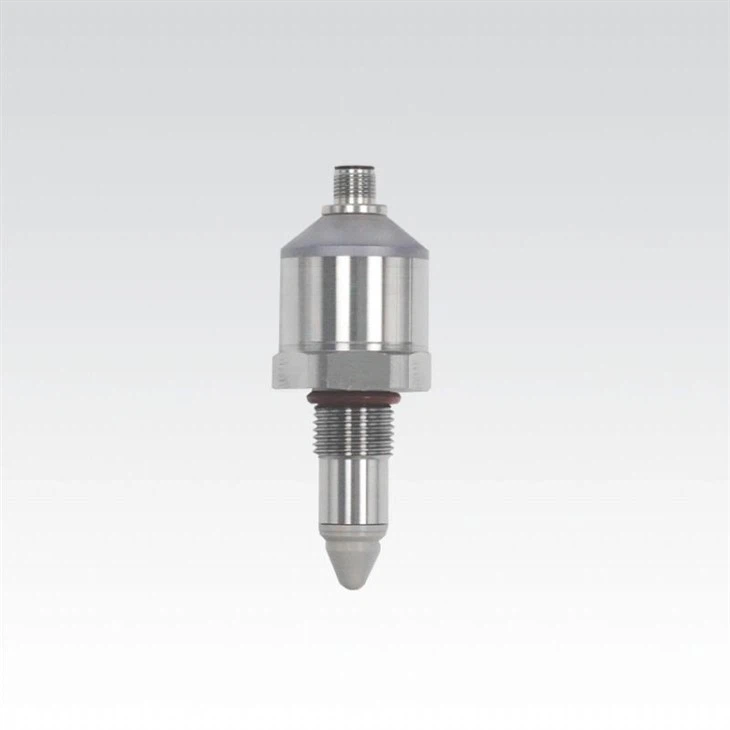

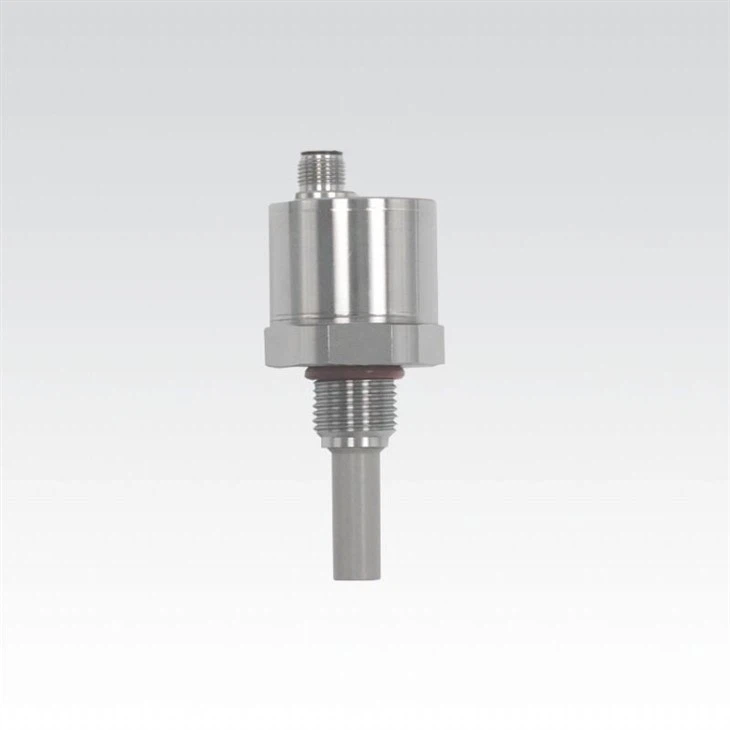

ZSWA6 Intelligent liquid Capacitive Level Switch structure is simple, no mechanical transmission structure, so it will not cause mechanical wear, long service life, easy to install, easy to debug.
ZSW Small Intelligent Capacitive Level Switch has a new circuit design, upgrade the analog circuit to the intelligent digital circuit, high precision, good stability, improve the user's range of use, easy to deal with the measurement of different materials.
ZSW Small Intelligent Capacitive Level Switch is optimized in software function, meet the majority of solid/liquid measurement (including viscous materials), only one key calibration can set the appropriate alarm position: in addition, the operator can watch the measured value in real time and modify the matching alarm value, in addition, it can also modify the delay value, delay value, high and low level alarm switch. It can meet the requirements of non-application conditions.
- Mobile: +86 13621933468
- E-mail: Jessica@ziasiot.com
Product Parameters
Description
ZSWA6 Intelligent liquid Capacitive Level Switch structure is simple, no mechanical transmission structure, so it will not cause mechanical wear, long service life, easy to install, easy to debug. ZSW Small Intelligent Capacitive Level Switch has a new circuit design, upgrade the analog circuit to the intelligent digital circuit, high precision, good stability, improve the user's range of use, easy to deal with the measurement of different materials. ZSW Small Intelligent Capacitive Level Switch is optimized in software function, meet the majority of solid/liquid measurement (including viscous materials), only one key calibration can set the appropriate alarm position: in addition, the operator can watch the measured value in real time and modify the matching alarm value, in addition, it can also modify the delay value, delay value, high and low level alarm switch. It can meet the requirements of non-application conditions.
Dimension
Technical parameters
Power supply: 24VDC
Output: 3A/250VAC SPDT; NPN; PNP
Temperature: -20°C to 100°C
Pressure: 5 bar (PTFE)/25 bar (PEEK)
Body material: SUS304/SUS316L
Sensor rod material: SUS304+PEEK/SUS316L+PEEK
Process connection: G1/2" E-connection: M12*1 (8-pin/5-pin, including 485 )
*Warning: Connect the wires correctly. Please cut off the excess wires and wrap them with insulating tape to prevent the wires
from being touched by mistake and cause the circuit to be short-circuited!
Installation
Note:
This product can be equipped with an operator, and the parameters of the instrument can be modified through AB wiring. Themodified parameters include calibration value, delay value, hysteresis value, high and low switch. For related information, please
refer to the operating instructions of the operator.
Application:
