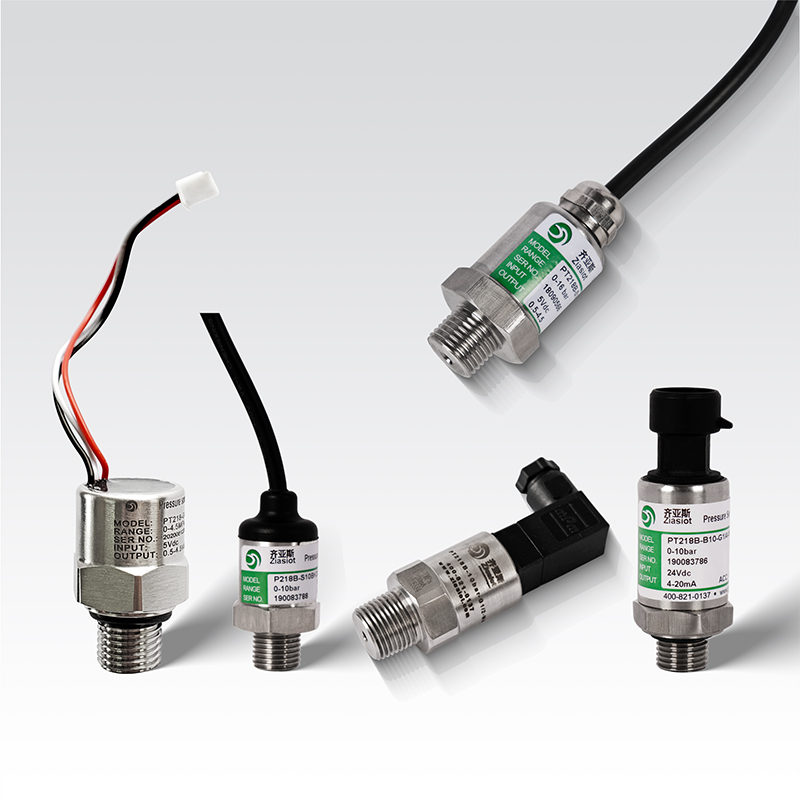

PT218X Ceramic Piezoresistive Pressure Sensor for Refregeration
PT218X Ceramic Piezoresistive Pressure Sensor for Refregeration
Pressure Range: 0~1.0MPa～60MPa;
Accuracy±0.25%F.S;
Temp: -40 ~ 125℃;
Signal output: 0-10V,0-5V,0-20mA,4-20mA;Response rate: ≤10msec;
Power: 24Vdc (9～36Vdc)
IP65
- Mobile: +86 13621933468
- E-mail: Jessica@ziasiot.com
The measurement accuracy is better than 0.5 level
Compact stainless steel housing package
Protection level IP65
Multiple electrical connection options
Imported high performance thick film ceramic core
Working temperature-40 ~ 125℃
Compact stainless steel housing package
Protection level IP65
Multiple electrical connection options
Imported high performance thick film ceramic core
Working temperature-40 ~ 125℃
Application area
Refrigeration control
air-conditioning unit
air-conditioning unit
Product description
The PT218LR series pressure transmitter is a high reliability and durability product with large quantities and low cost OEM.It adopts the international advanced piezoresistive sensor core, and has the characteristics of compact design, ultra-wide working temperature range and special valve needle for pressure guide port, etc.It is especially suitable for measuring and controlling fluid pressure in air conditioning and refrigeration industry
Parameters
| Pressure range | 0～10MPa | |||
| Type of pressure | manometer pressure | |||
| measurement accuracy | Grade 0.5 | |||
| behaviour of electricity | Two wire system | Three-wire system 0 ~ 10v | three-wire system | three-wire system |
| output signal | （4～20）mA | （0～10）V | （0～5）V | （0.5～4.5）V |
| Power supply | 6.5～32Vdc | 12～32Vdc | 10～32Vdc | 5Vdc |
| Load resistance | ＜(U-6.5)/0.02 | ＞20k | ＞20k | ＞20k |
| electrical connection | M12 connector, hessman, PACK connector, waterproof connector | |||
| Overload pressure | 1.5 times rated pressure | |||
| Working temperature | （-40～125）℃ | |||
| Compensation temperature | （0～80）℃ | |||
| the protection grades | IP65 | |||
| response rate | ≤10msec | |||
| Long term stability | 0.2%FS/year | |||
